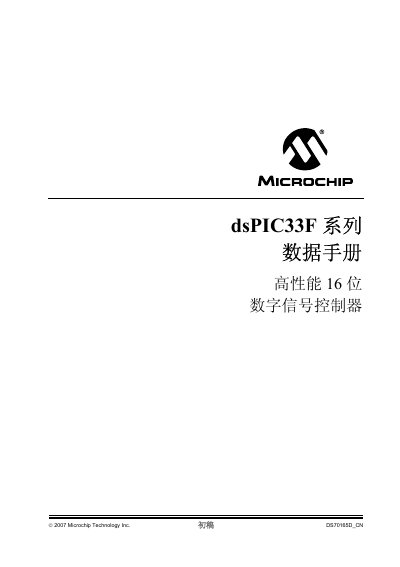

This datasheet details the specifications for the Microchip dsPIC33F series of high-performance 16-bit digital signal controllers.
The document provides a comprehensive overview of the dsPIC33F family, which includes two sub-series: General Purpose and Motor Control. It covers key features such as the improved Harvard architecture CPU, Direct Memory Access (DMA), and various communication modules including SPI, I2C, UART, and CAN.
Technical specifications are provided for system management, power consumption modes, timers, capture/compare/PWM units, analog-to-digital converters (ADC), and motor control peripherals. The document also lists specific device variants within the family, detailing their pin counts, flash memory sizes, RAM capacities, and available peripheral features. This manual is written in Chinese.
| Operating Speed | DC – 40 MIPS |
|---|---|
| Temperature Range | -40°C to +85°C |
| Program Memory Size | Up to 256 KB |
| Data SRAM Size | Up to 30 KB |
| ADC Resolution | 10-bit or 12-bit |
| Operating Voltage | 3.3V (±10%) |
The family includes two sub-series: General Purpose and Motor Control.
The maximum operating speed is DC – 40 MIPS.
