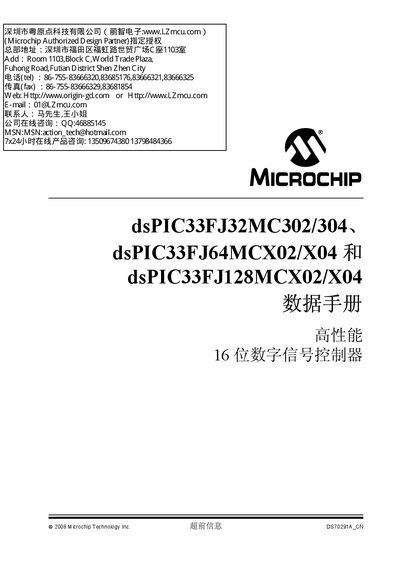

This is a datasheet that introduces the characteristics and usage methods of three high-performance 16-bit digital signal controllers, dsPIC33FJ32MC302/304, dsPIC33FJ64MCX02/X04 and dsPIC33FJ128MCX02/X04.
The dsPIC33FJ series are high‑performance 16‑bit digital signal controllers featuring up to 40 MIPS operation, Harvard architecture, and extensive peripheral sets. They support industrial (‑40 °C to +85 °C) and extended (‑40 °C to +125 °C) temperature ranges and include up to 128 KB flash and 16 KB SRAM.
The devices offer flexible clock options, DMA, multiple timers, motor‑control PWM, ADC/DAC converters, communication modules (SPI, I2C, UART, ECAN), and a variety of package options (28‑pin SPDIP/SOIC/QFN‑S, 44‑pin TQFP/QFN). Detailed pin‑out diagrams and product identification codes are provided throughout the document. This manual is written in Chinese.
| Maximum operating speed | 40 MIPS |
|---|---|
| Industrial temperature range | -40°C to +85°C |
| Extended temperature range | -40°C to +125°C |
| Program flash memory | up to 128 KB |
| Data SRAM | up to 16 KB |
| ADC resolution and speed | 10‑bit 1.1 Msps or 12‑bit 500 ksps |
| DAC resolution and speed | 16‑bit dual‑channel, up to 100 ksps |
| Package options | 28‑pin SPDIP/SOIC/QFN‑S, 44‑pin TQFP/QFN |
| Timers | 5 timers (4 programmable), multiple PWM channels |
The controllers can operate up to 40 MIPS at 3.0‑3.6 V.
They support an industrial range of –40 °C to +85 °C and an extended range of –40 °C to +125 °C.
Up to 128 KB of program flash memory is provided.
