Microchip dsPIC33F Family Datasheet

dsPIC33F Family Data Sheet, contains product features and application information

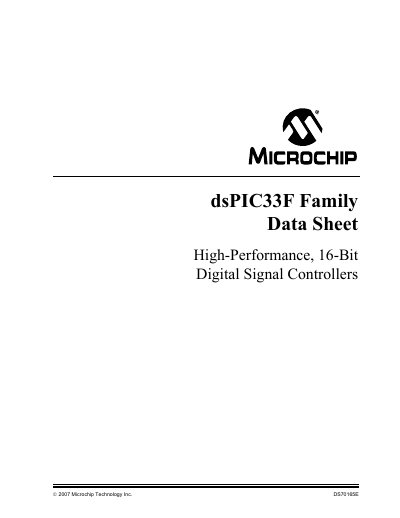

Microchip dsPIC33F Family Datasheet - cover page
Brand
MICROCHIP
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
370
File format
PDF
File size
5 MB
Published
12 April, 2012
Updated
30 September, 2023
MD5 checksum
536C0BD9A9A7F3C45C5F6AF6A21E8C12

About this manual

The dsPIC33F family consists of high‑performance 16‑bit digital signal controllers designed for general‑purpose and motor‑control applications. The datasheet details the device architecture, peripheral set, memory organization, and packaging options.

Key sections cover operating ranges, CPU core features, DMA, communication modules, motor‑control peripherals, ADCs, flash and SRAM capacities, power‑management options, and pin‑out diagrams, enabling designers to select the appropriate variant for their embedded system.

What's inside

  • Operating Range
  • CPU Architecture
  • Direct Memory Access (DMA)
  • Communication Modules
  • Motor Control Peripherals
  • Analog-to-Digital Converters (ADCs)
  • Packaging
  • Pin Diagrams
  • Product Identification System

Specifications

Maximum MIPS40 MIPS @ 3.0‑3.6 V
CPU data path width16‑bit
Instruction width24‑bit
Program memory address spaceUp to 4 M instruction words
Data memory address spaceUp to 64 KB
Flash program memory sizeUp to 256 KB
Data SRAM sizeUp to 30 KB (incl. 2 KB DMA RAM)
Digital I/O pinsUp to 85 programmable pins
On‑chip voltage regulator2.5 V regulator
Operating voltage3.3 V
Package options64‑, 80‑, 100‑pin TQFP

Frequently asked questions

How much flash memory is available on dsPIC33F devices?

Each dsPIC33F device provides up to 256 KB of flash program memory.

How many digital I/O pins can be programmed?

The controller offers up to 85 programmable digital I/O pins.
