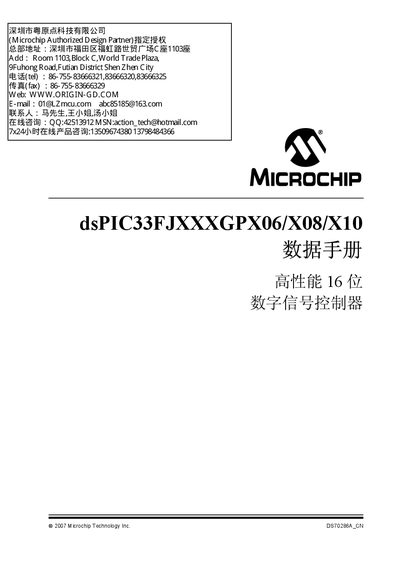

This document is a datasheet for the dsPIC33FJXXXGPX06/X08/X10 digital signal controllers from Microchip Technology Inc. The datasheet describes the high-performance, 16-bit features and characteristics of the product.
The dsPIC33FJXXXGPX06/X08/X10 family are high‑performance 16‑bit digital signal controllers offering up to 40 MIPS, industrial temperature range, and a rich set of peripherals including DMA, CAN, UART, and multiple ADC modules. They support flexible clock sources, on‑chip regulators, and low‑power modes.
The handbook covers device architecture, pin‑out diagrams for 64‑, 80‑ and 100‑pin TQFP packages, peripheral overviews, electrical specifications, and a detailed device table listing memory sizes, I/O counts, and package options. This manual is written in Chinese.
| Maximum MIPS | 40 MIPS |
|---|---|
| Flash Program Memory | 256 KB |
| Data SRAM | 30 KB (including 2 KB DMA RAM) |
| Programmable Digital I/O Pins | up to 85 |
| Timers | up to 9 16‑bit timers (4 can be paired as 32‑bit) |
| Operating Voltage | 3.3 V (+10%) |
| Operating Temperature Range | -40 °C to +85 °C |
The controller can achieve up to 40 MIPS when powered at 3.0‑3.6 V.
They operate from –40 °C to +85 °C.
