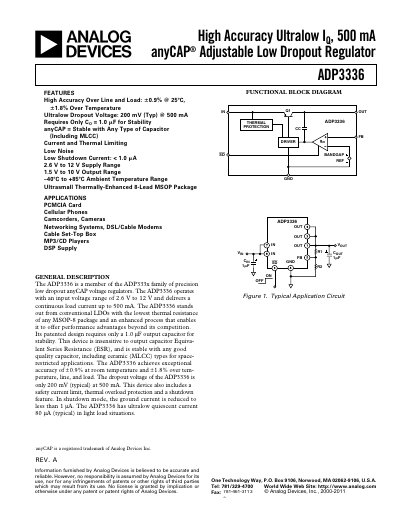

Analog Devices ADP3336 Low Dropout Regulator Handbook
The ADP3336 is a high‑accuracy, ultra‑low dropout (LDO) regulator that operates from 2.6 V to 12 V and delivers up to 500 mA continuous load current. It features ±0.9 % output voltage accuracy at 25 °C, a typical 200 mV dropout at 500 mA, and an ultralow shutdown current below 1 µA, making it suitable for space‑constrained applications such as PCMCIA cards, cellular phones, camcorders and networking equipment.
The device is stable with any good‑quality capacitor (anyCAP) as low as 1 µF, includes current‑limit and thermal‑overload protection, and uses a paddle‑under‑lead MSOP‑8 package with a thermal resistance of 110 °C/W. Detailed specifications, pin functions, theory of operation, and layout recommendations are provided for designers.
Analog Devices ADP3336 specifications
| Dropout Voltage | 200 mV typ at 500 mA |
|---|---|
| Quiescent Current | 80 µA typ (light load) |
| Input Voltage Range | 2.6 V to 12 V |
| Maximum Output Current | 500 mA |
Source: Analog Devices ADP3336 Low Dropout Regulator Handbook
All Analog Devices ADP3336 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical dropout voltage of the ADP3336?
The typical dropout voltage is 200 mV when delivering 500 mA.
What input voltage range does the ADP3336 support?
It operates from 2.6 V up to 12 V input.
