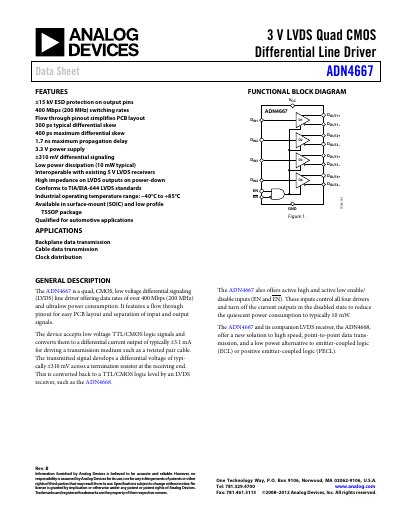

Analog Devices ADN4667 Quad CMOS Differential Line Driver Datasheet
The ADN4667 is a quad, CMOS, low‑voltage differential signaling (LVDS) line driver offering data rates up to 400 Mbps (200 MHz) with ultra‑low power consumption. It features a flow‑through pinout for easy PCB layout, ±15 kV ESD protection on output pins, and is qualified for automotive use.
The document provides full electrical specifications, pin descriptions, typical performance curves, ordering information, and an automotive product variant. It also includes application guidance for backplane, cable data transmission, and clock distribution.
Analog Devices ADN4667 specifications
| Supply Voltage (VCC) Range | 3.0 V to 3.6 V |
|---|---|
| Typical Differential Output Voltage (VOD) | 310 mV |
| Typical Propagation Delay (High‑to‑Low) | 0.9 ns |
| Typical No‑Load Supply Current (Drivers Enabled) | 8.0 mA |
| ESD Protection (Output Pins) | ±15 kV |
Source: Analog Devices ADN4667 Quad CMOS Differential Line Driver Datasheet
All Analog Devices ADN4667 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage range for the ADN4667?
The device operates from 3.0 V to 3.6 V supply voltage.
From: Analog Devices ADN4667 Quad CMOS Differential Line Driver Datasheet
What is the typical differential output voltage of the ADN4667?
Typical differential output voltage is 310 mV.
From: Analog Devices ADN4667 Quad CMOS Differential Line Driver Datasheet
What is the typical differential output voltage of the ADN4667?
The typical differential output voltage is 310 mV.
What temperature range can the ADN4667 operate in?
It operates from –40 °C to +85 °C.
