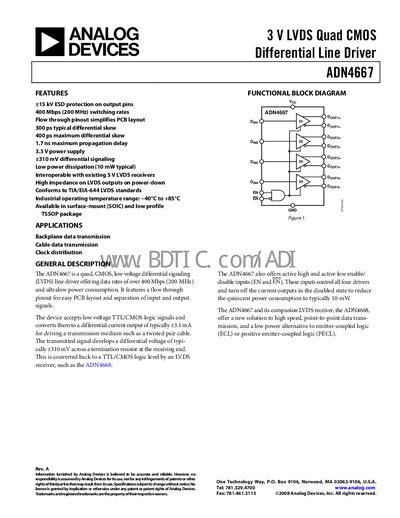

ADN4667 is a 3.3V LVDS Quad CMOS Differential Line Driver produced by Analog Devices, Inc. The device has ±15 kV ESD protection, 400 Mbps (200 MHz) switching rate, low power consumption (10 mW typical), and conforms to TIA/EIA-644 LVDS standards.
The ADN4667 is a quad, CMOS low‑voltage differential signaling (LVDS) line driver that converts single‑ended 3 V logic to a differential current output. It features a flow‑through pinout for easy PCB layout, +15 kV ESD protection, and typical supply current of about 4 mA when enabled.
Designed for backplane, cable data transmission and clock distribution, the device is available in 16‑lead SOIC and TSSOP packages and operates from –40 °C to +85 °C. Typical differential output voltage is 310 mV into a 100 Ω termination, delivering 3.1 mA of driver current.
| Differential Output Voltage (typical) | 310 mV |
|---|---|
| Supply Voltage Range | 3.0 V to 3.6 V |
| ESD Protection (output pins) | +15 kV |
The typical differential output voltage is 310 mV.
It operates from –40 °C to +85 °C.
