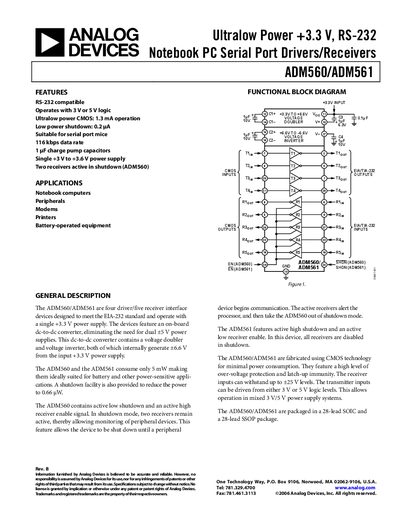

Analog Devices ADM560/ADM561 Datasheet
The ADM560 and ADM561 are ultra‑low‑power RS‑232 driver/receiver ICs that operate from a single +3.3 V supply. They include an on‑chip charge‑pump voltage converter that generates ±6.6 V, allowing operation with 3 V or 5 V logic levels while consuming only a few microwatts.
The document provides detailed specifications, absolute maximum ratings, pin configurations, functional block diagrams, and typical performance curves, along with enable and shutdown control information for both devices.
Analog Devices ADM560 specifications
| Output Voltage Swing (typical) | +5.0 V to +5.5 V |
|---|---|
| Power Supply Current (no load) | 5 mA |
| Shutdown Supply Current | 0.2 pA |
| EIA‑232 Input Voltage Range | -25 V to +25 V |
| Maximum Input Voltage (over‑voltage protection) | +25 V |
| Package Types | 28‑lead SOIC and 28‑lead SSOP |
All Analog Devices ADM560 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the shutdown supply current of the ADM560?
The shutdown supply current is specified as 0.2 pA when SHDN is grounded.
How many receivers remain active in shutdown mode for the ADM560?
Two receivers stay active in shutdown mode for the ADM560, allowing peripheral monitoring.
How much power does the ADM560/ADM561 consume in normal operation?
The devices consume only about 5 mW, corresponding to a supply current of 3.5 mA to 5 mA at 3.3 V.
What is the shutdown current of the devices?
The shutdown current is 0.2 pA for the ADM560 and 5 pA for the ADM561.
