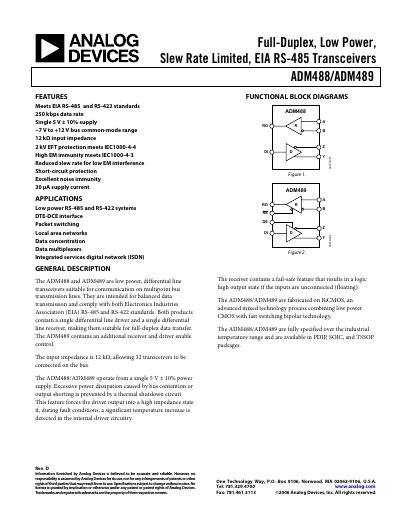

Analog Devices ADM488/ADM489 Datasheet Rev D
The ADM488 and ADM489 are low‑power, full‑duplex differential line transceivers that meet EIA RS‑485 and RS‑422 standards. They operate from a single 5 V ±10 % supply and include features such as reduced slew rate, short‑circuit protection, and high electromagnetic immunity.
The devices are available in PDIP, SOIC, and TSSOP packages and support up to 32 transceivers on a single bus. Detailed specifications, timing diagrams, pin configurations, and test circuits are provided for designers.
Analog Devices ADM488 specifications
| Supply voltage (VCC) | 5 V ±10 % |
|---|---|
| Input impedance | 12 kΩ |
| Maximum data rate | 250 kbps |
All Analog Devices ADM488 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum data rate supported by the transceivers?
Both parts support a maximum data rate of 250 kbps.
What protection is provided against short‑circuit conditions?
The devices include short‑circuit protection and a thermal shutdown circuit that forces the driver output to high‑impedance when excessive temperature is detected.
What is the maximum data rate of the ADM488/ADM489?
The devices support up to 250 kbps data rate.
What supply voltage do the ADM488/ADM489 require?
They operate from a single 5 V supply with a ±10 % tolerance.
