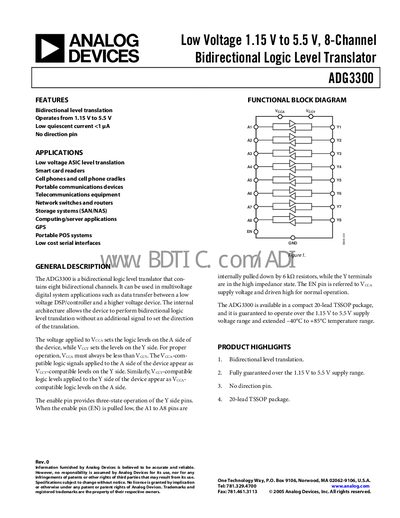

This document is the datasheet of ADG3300 product, which introduces the characteristics of the product, including bidirectional level translation, operating voltage range 1.15V to 5.5V, low static current < 1μA, no direction pin, etc.
The ADG3300 from Analog Devices provides eight bidirectional channels for low‑voltage level translation between 1.15 V and 5.5 V. It requires no direction pin and features a low quiescent current below 1 pA.
The device is supplied in a 20‑lead TSSOP package and is rated for industrial temperature ranges (‑40 °C to +85 °C). Detailed specifications, pin functions, and performance graphs are included for designers.
| Supply Voltage (Vcca) | 1.15 V to 5.5 V |
|---|---|
| Quiescent Current | <1 pA |
| Number of Channels | 8 |
| Maximum Data Rate | 50 Mbps |
| Propagation Delay (A→Y) | 6–10 ns |
The ADG3300 operates from 1.15 V to 5.5 V.
It provides eight bidirectional channels.
The device supports up to 50 Mbps data rate.
The quiescent current is less than 1 pA.
