Start here

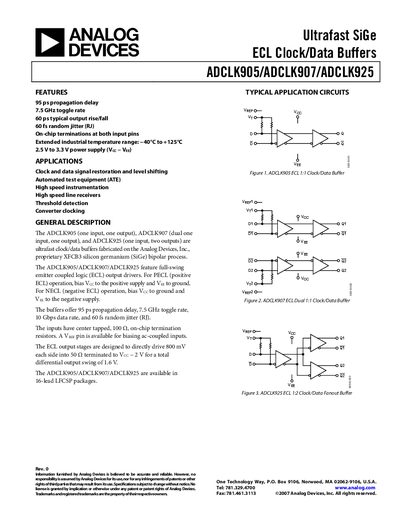

Analog Devices ADCLK905/ADCLK907/ADCLK925 Clock/Data Buffer Datasheet
The ADCLK905, ADCLK907 and ADCLK925 are ultrafast SiGe clock/data buffers offering full‑swing ECL output drivers. They support both PECL and NECL operation, provide on‑chip terminations, and are available in 16‑lead LFCSP packages.
Key features include 95 ps typical propagation delay, 7.5 GHz toggle rate, 60 fs random jitter, a supply range of 2.5 V‑3.3 V, and an industrial temperature range from –40 °C to +125 °C. The document provides electrical characteristics, pin configurations, typical application circuits, and performance graphs.
Analog Devices ADCLK905 specifications
| Propagation Delay (typical) | 95 ps |
|---|---|
| Toggle Rate | 7.5 GHz |
| Random Jitter (RMS) | 60 fs |
| Supply Voltage | 2.5 V – 3.3 V |
| Operating Temperature Range | -40 °C – +125 °C |
| Input High‑Level Voltage | 1.6 V |
| Output Differential Voltage | 610 mV – 1040 mV |
Source: Analog Devices ADCLK905/ADCLK907/ADCLK925 Clock/Data Buffer Datasheet
All Analog Devices ADCLK905 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical propagation delay of the ADCLK buffers?
The typical propagation delay is 95 ps.
From: Analog Devices ADCLK905/ADCLK907/ADCLK925 Clock/Data Buffer Datasheet
What temperature range can the ADCLK devices operate in?
They operate from –40 °C up to +125 °C.
From: Analog Devices ADCLK905/ADCLK907/ADCLK925 Clock/Data Buffer Datasheet
What supply voltage range do these devices require?
They operate from 2.5 V to 3.3 V (with 10 % tolerance).
What is the operating temperature range?
The devices are rated for –40 °C to +125 °C.
