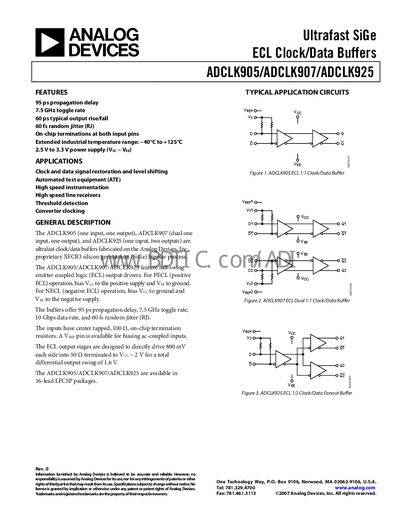

The ADCLK905/ADCLK907/ADCLK925 are ultrafast SiGe ECL clock/data buffers featuring 95 ps propagation delay, 7.5 GHz toggle rate, 60 ps typical output rise/fall and 60 fs random jitter (RJ).
The ADCLK905 (single‑output), ADCLK907 (dual‑output) and ADCLK925 (1‑to‑2 fan‑out) are ultrafast SiGe ECL clock/data buffers designed for high‑speed instrumentation, automated test equipment, and converter clocking. They feature on‑chip terminations, wide temperature range, and support both PECL and NECL operation.
Key specifications include a typical propagation delay of 95 ps, a 7.5 GHz toggle rate, and 60 fs rms random jitter. The devices are supplied in a 16‑lead LFCSP package and operate from a 2.5 V to 3.3 V supply across –40 °C to +125 °C.
| Toggle Rate | 7.5 GHz |
|---|---|
| Random Jitter (RJ) | 60 fs rms |
| Supply Voltage Requirement | 2.5 V to 3.3 V |
| Operating Temperature Range | -40°C to +125°C |
| Input Voltage High Level | 1.6 V |
| Output Voltage High Level | 1.26 V |
| Package Type | 16‑lead LFCSP |
They operate from 2.5 V to 3.3 V (with 10 % tolerance).
The devices are rated for –40 °C to +125 °C.
Random jitter is specified as 60 fs rms.
