Start here

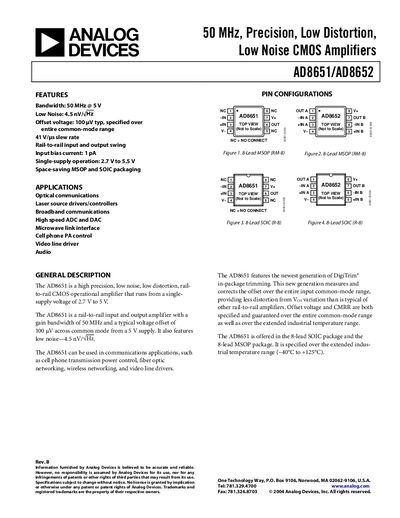

Analog Devices AD8651/AD8652 Datasheet
The AD8651/AD8652 amplifiers provide high precision, low distortion, and rail‑to‑rail input and output operation from a single supply of 2.7 V to 5.5 V. They are suited for optical communications, laser drivers, high‑speed ADC/DAC interfaces, microwave links, cell‑phone PA control, video line drivers, and audio applications.
Key features include a 50 MHz gain‑bandwidth product, 4.5 nV/√Hz voltage noise density, 1 pA input bias current, 41 V/µs slew rate, and up to 40 mA output current. The devices are offered in 8‑lead MSOP and SOIC packages and are specified over an extended temperature range of –40 °C to +125 °C.
Analog Devices AD8652 specifications
| Bandwidth | 50 MHz @ 5 V |
|---|---|
| Voltage Noise Density | 4.5 nV/√Hz |
| Input Bias Current | 1 pA |
| Slew Rate | 41 V/µs |
| Supply Voltage Range | 2.7 V to 5.5 V |
| Output Current | 40 mA |
All Analog Devices AD8652 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the gain‑bandwidth product of the AD8651?
The AD8651 has a gain‑bandwidth product of 50 MHz at a 5 V supply.
What supply voltage range can the AD8651/AD8652 operate from?
Both devices operate from a single supply between 2.7 V and 5.5 V.
What is the bandwidth of the AD8651/AD8652?
The devices have a gain‑bandwidth product of 50 MHz when powered at 5 V.
What is the typical input bias current?
The typical input bias current is 1 pA.
What is the gain‑bandwidth product of the AD8651/AD8652?
The gain‑bandwidth product is 50 MHz.
What supply voltage range can the AD8651/AD8652 operate from?
They operate from a single‑supply voltage of 2.7 V to 5.5 V.
