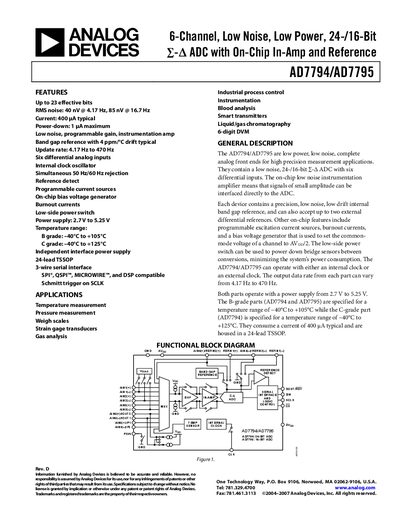

Analog Devices AD7794/AD7795 Datasheet
The AD7794 and AD7795 are low‑power, low‑noise analog‑to‑digital converters offering up to 24‑bit resolution (AD7794) or 16‑bit (AD7795). They integrate a precision band‑gap reference, programmable gain instrumentation amplifier, on‑chip bias generator, and a low‑side power switch for sensor power‑down.
The devices operate from a 2.7 V to 5.25 V supply, support SPI/QSPI/MICROWIRE interfaces, and provide selectable update rates from 4.17 Hz to 470 Hz. Typical applications include temperature, pressure, weigh‑scale, strain‑gage, and other high‑precision sensor measurements.
Analog Devices AD7795 specifications
| Power supply voltage | 2.7 V to 5.25 V |
|---|---|
| RMS noise (typical) | 40 nV @ 4.17 Hz |
| Supply current (typical) | 400 pA |
| Temperature range (B‑grade) | -40 °C to +105 °C |
| Number of differential inputs | Six |
All Analog Devices AD7795 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the power‑supply voltage range for the AD7794/AD7795?
The devices operate from 2.7 V up to 5.25 V.
What update‑rate options are available?
Output update rates can be selected between 4.17 Hz and 470 Hz.
What is the power supply voltage range for the AD7795?
The AD7795 operates from a supply voltage of 2.7 V to 5.25 V.
What RMS noise does the AD7795 achieve at 4.17 Hz?
At an update rate of 4.17 Hz the RMS noise is specified as 40 nV.
