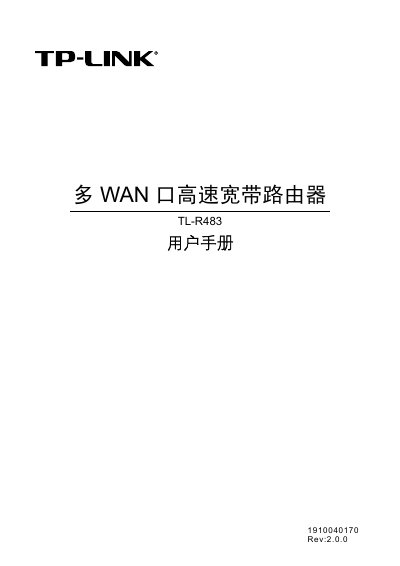

TP-Link TL-R483 Multi-WAN Router User Manual
This manual provides a complete guide to the TL‑R483 multi‑WAN router, including hardware installation, quick‑start setup, and detailed configuration of WAN, LAN, QoS, security, and advanced features. It also contains appendices with FAQs, TCP/IP settings, and a technical specifications table.
The document is organized into chapters that walk users through preparing the device, connecting it to the network, and managing its functions via the web interface, making it suitable for home, small office, or small‑scale internet café environments. This manual is written in Chinese.
TP-Link TL-R483 specifications
| LAN ports | 1 x 10/100M RJ45 (Auto MDI/MDIX) |
|---|---|
| WAN ports | 1 x 10/100M RJ45 (Auto MDI/MDIX) |
| WAN/LAN ports | 3 x 10/100M RJ45 (Auto MDI/MDIX) |
| Power input | 100‑240 V~ 50/60 Hz, 0.3 A |
| Dimensions (L×W×H) | 209 mm × 126 mm × 26 mm |
| Operating temperature | 0 °C – 40 °C |
All TP-Link TL-R483 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What is the default IP address and login credentials for the router?
The default management address is 192.168.1.1 and the default username and password are both admin.
How do I reset the router to factory defaults?
While the router is powered on, press and hold the RESET button until the system LED flashes five times, then release the button; the router will restore factory settings and reboot.
How many LAN ports does the TL‑R473 have?
The TL‑R473 provides four LAN ports.
What is the default IP address after a factory reset?
After resetting, the router’s default management address is http://192.168.1.1.
How do I set a DMZ host on the TL‑R483?
Enter the management interface, go to “Forwarding Rules” → “DMZ Host”, enter the host’s IP address, enable the option and save.
How can I change the router’s web‑management port to avoid conflict with a local web server?
In the management interface, open “System Tools” → “Remote Web Management”, change the “Web Management Port” to a value other than 80 (e.g., 88), save and reboot the router.
