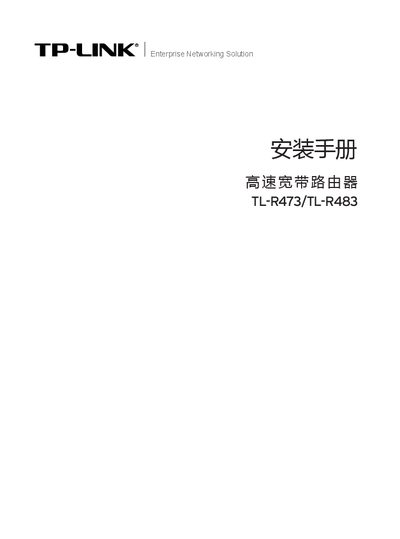

This manual mainly introduces the hardware characteristics, installation methods and precautions in the installation process of TL-R473/TL-R483 routers.
This guide provides step‑by‑step instructions for installing the TL‑R473 and TL‑R483 routers, including hardware connections, safety precautions, and initial configuration. It is intended for network engineers and administrators working with small‑business or office networks.
The manual also includes a troubleshooting appendix and a technical specifications table that lists ports, power requirements, dimensions, and environmental limits for both router models. This manual is written in Chinese.
| LAN ports (TL‑R473) | 4 x 10/100M RJ45 (Auto MDI/MDIX) |
|---|---|
| WAN ports (TL‑R473) | 1 x 10/100M RJ45 (Auto MDI/MDIX) |
| LAN ports (TL‑R483) | 1 x 10/100M RJ45 (Auto MDI/MDIX) |
| WAN ports (TL‑R483) | 1 x 10/100M RJ45 (Auto MDI/MDIX) |
| Power input | 100‑240 V, 50/60 Hz, 0.3 A |
| Dimensions (L×W×H) | 209 mm × 126 mm × 26 mm |
| Storage temperature | -40 °C to 70 °C |
| Operating humidity | 10 %–90 % RH (no condensation) |
| Storage humidity | 20 %–90 % RH (no condensation) |
The TL‑R473 provides four LAN ports.
After resetting, the router’s default management address is http://192.168.1.1.
The router operates on an input voltage of 100 V to 240 V, 50/60 Hz.
Unplug the power cord and avoid using wet cloths or liquids when cleaning.
