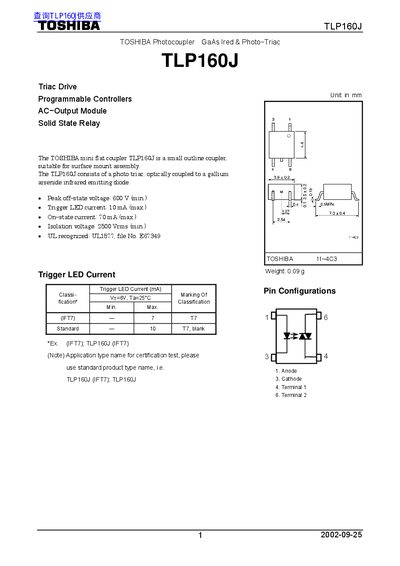

Toshiba TLP160J Photocoupler Datasheet
The TLP160J is a miniature surface‑mount photocoupler that combines a photo‑triac with a GaAs infrared emitting diode. It is intended for general electronics applications such as computers, office equipment, measuring equipment, industrial robotics, and domestic appliances.
The document lists maximum ratings, recommended operating conditions, individual and coupled electrical characteristics, and safety restrictions. Key parameters include a 600 V off‑state voltage, 70 mA on‑state current, 2500 Vrms isolation voltage, and operating temperature range from –40 °C to 100 °C.
Toshiba TLP160J specifications
| Peak off‑state voltage | 600 V (min.) |
|---|---|
| On‑state current | 70 mA (max.) |
| Isolation voltage | 2500 Vrms (min.) |
| Forward current IF | 50 mA |
| Supply voltage | Up to 240 Vac |
| Operating temperature range | -40 °C to 100 °C |
| Storage temperature range | -55 °C to 125 °C |
All Toshiba TLP160J documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum off‑state voltage of the TLP160J?
The device is rated for a peak off‑state voltage of 600 V (minimum).
What supply voltage can be applied to the TLP160J?
The recommended supply voltage can be up to 240 Vac.
What is the minimum isolation voltage for the TLP160J?
The device provides a minimum isolation voltage of 2500 Vrms.
What is the maximum forward current rating at 25 °C?
The maximum forward current is 50 mA at 25 °C.
