TLP160J is a photocoupler produced by TOSHIBA. It consists of a photo triac and an infrared emitting diode. This photocoupler has a small outline, high reliability, and long life. It is mainly used in motor drive, programmable controllers, AC output modules and other fields.
The TLP160J is a miniature flat‑pack photocoupler that combines a photo‑triac with a gallium‑arsenide infrared LED. It is designed for surface‑mount applications such as programmable controllers, AC‑output modules and solid‑state relays.

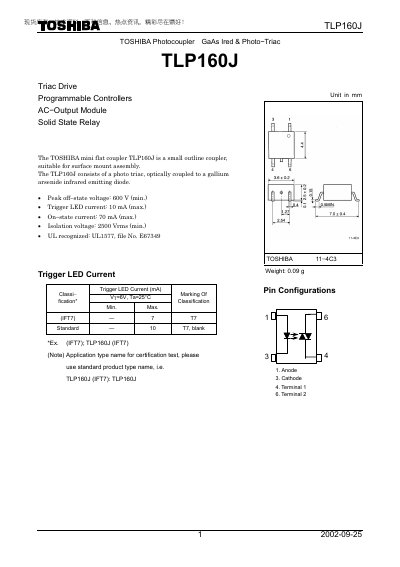

The document provides maximum ratings, recommended operating conditions, and detailed electrical characteristics, including isolation voltage, forward current, and temperature limits. Safety and handling notes for GaAs devices are also included.
| Peak off‑state voltage | 600 V (min.) |
|---|---|
| Trigger LED current | 10 mA (max.) |
| Isolation voltage | 2500 Vrms (min.) |
| Supply voltage (AC) | 240 Vac |
| Forward current IF (typical) | 20 mA |
| On‑state RMS current | 40 mA |
The device provides a minimum isolation voltage of 2500 Vrms.
The maximum forward current is 50 mA at 25 °C.
It is rated for a 240 Vac supply voltage.
Yes, the GaAs material is toxic; avoid breaking, cutting, or pulverizing the component and follow proper disposal regulations.
