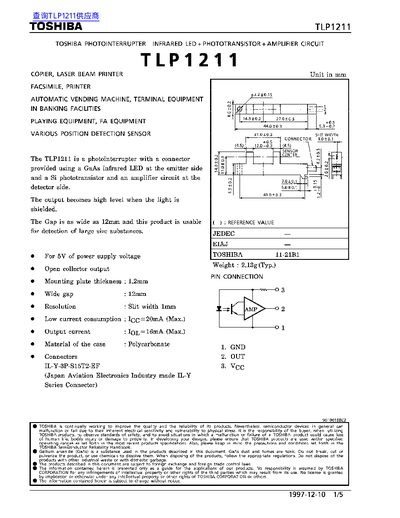

Toshiba TLP1211 Photointerrupter Datasheet
The TLP1211 is a photointerrupter that combines an infrared LED, a silicon phototransistor, and an amplifier circuit. It detects the presence of objects by generating a high‑level output when the light path is blocked, with a wide 12 mm gap suitable for large‑size detection.
The datasheet lists maximum ratings, opto‑electrical specifications, mechanical data such as slit width and terminal strength, and detailed precautions for mounting, torque, and material compatibility. It also includes characteristic curves for output current versus detector distance.
Toshiba TLP1211 specifications
| Supply Voltage (Vcc) | 5.0 V (typ) |
|---|---|
| Output Voltage (max) | 28 V |
| Low Level Output Current (IOL) | 16 mA (max) |
| Operating Temperature Range | -25 °C to 75 °C |
| Wide Gap | 12 mm |
| Slit Width | 21.0 mm |
All Toshiba TLP1211 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What happens to the output when the light is blocked?
The output becomes high level when the light is shielded.
What torque should be used to tighten the mounting screw?
The screw shall be tightened to a clamping torque of 0.59 N·m.
What supply voltage does the TLP1211 require?
The device operates from a 5 V supply, typically 5.0 V and up to 5.5 V.
What is the operating temperature range of the TLP1211?
It can be used from –25 °C up to 75 °C.
What type of output does the TLP1211 provide?
The TLP1211 uses an open‑collector output.
What torque should be applied when tightening the mounting screw?
The screw should be tightened to a clamping torque of 0.59 N·m.
