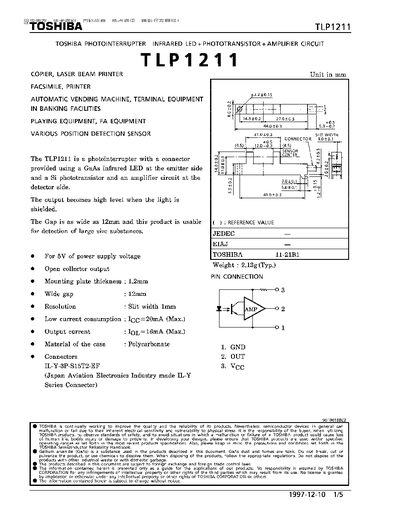

The TLP1211 photointerrupter combines a GaAs infrared LED, a Si phototransistor and an on‑board amplifier. It provides an open‑collector output that goes high when the light path is blocked. The device features a wide 12 mm gap suitable for detecting large objects and a polycarbonate case.
The datasheet lists maximum ratings, opto‑electrical characteristics, mechanical dimensions, and safety precautions such as torque limits for mounting screws and chemical incompatibilities with the polycarbonate housing.
| Supply Voltage (Vcc) typical | 5.0 V |
|---|---|
| Supply Voltage (Vcc) maximum | 5.5 V |
| Low Level Output Current (IOL) max | 16 mA |
| Operating Temperature Range | -25 °C to 75 °C |
| Storage Temperature Range | -40 °C to 85 °C |
| Gap width | 12 mm |
| Mounting plate thickness | 1.2 mm |
| Case material | Polycarbonate |
| Weight (typical) | 2.13 g |
| Peak emission wavelength (LED) | 940 nm |
| Response frequency | 1.5 kHz |
The device operates from a 5 V supply, typically 5.0 V and up to 5.5 V.
It can be used from –25 °C up to 75 °C.
The gap is 12 mm wide.
The case is made of polycarbonate.
