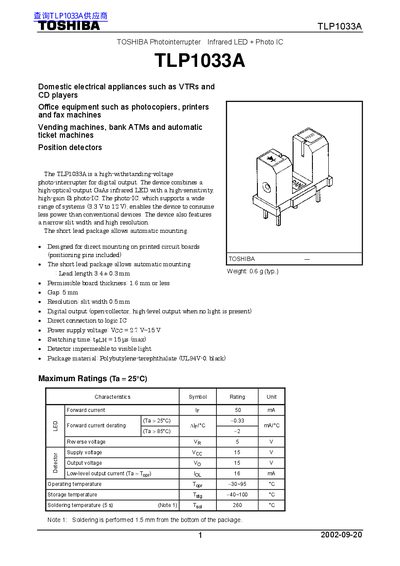

Toshiba TLP1033A Photointerrupter Infrared LED + Photo IC Datasheet
The TLP1033A is a high‑withstanding‑voltage photointerrupter that combines a GaAs infrared LED with a high‑sensitivity Si photo‑IC. It offers a digital open‑collector output, low power consumption, and a narrow 0.5 mm slit for high resolution.
The document provides maximum ratings, recommended operating conditions, electrical and optical characteristics, package dimensions, pin connections, and safety precautions for reliable integration in electronic designs.
Toshiba TLP1033A specifications
| Forward current (IF) | 50 mA |
|---|---|
| Output voltage (Vo) | 15 V |
| Low‑level output current | 16 mA |
| Operating temperature | -30 °C – 95 °C |
| Weight (typical) | 0.6 g |
| Gap between LED and detector | 5 mm |
Source: Toshiba TLP1033A Photointerrupter Infrared LED + Photo IC Datasheet
