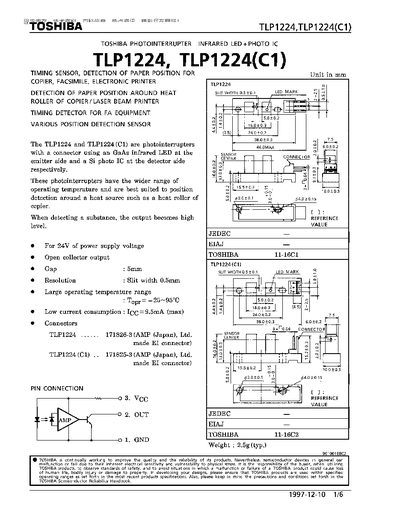

Toshiba TLP1224 Photointerrupter Guide
The TLP1224 (and TLP1224(C1)) is an infrared photointerrupter designed for timing and position detection in copiers, facsimiles, and electronic printers. It uses a GaAs LED emitter and a Si photo‑IC detector and is suited for use around heat sources such as heat rollers.
The document lists electrical ratings, mechanical dimensions, recommended connectors, and handling precautions, including torque specifications and material compatibility. Graphs illustrate the relationship between shutter position and output voltage.
Toshiba TLP1224 specifications
| Supply Voltage (max) | 30 V |
|---|---|
| Operating Temperature Range | -25~95 °C |
| Storage Temperature Range | -40~95 °C |
| Slit Width (resolution) | 0.5 mm |
Source: Toshiba TLP1224 (C1) Manual
All Toshiba TLP1224 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the recommended slit width for the sensor?
The sensor’s resolution slit width is 0.5 mm.
What is the operating temperature range of the TLP1224?
It operates from –25 °C to +95 °C.
What is the recommended supply voltage range for the TLP1224 (C1)?
The device is intended to be powered with a supply voltage between 21 V and 26 V, typically 24 V.
What is the operating temperature range of the TLP1224 (C1)?
It can operate from –25 °C up to 95 °C.
What is the operating temperature range of the TLP1224?
The device operates from –25 °C up to 95 °C.
Which connector is recommended for the TLP1224?
AMP (Japan) Ltd. made EI series connector (Standard type) is recommended.
