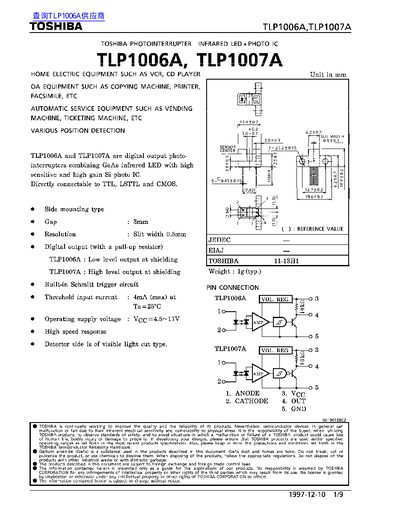

Toshiba TLP1006A/TLP1007A Photo Interrupter Datasheet
The TLP1006A and TLP1007A are digital‑output photo‑interrupters that combine a GaAs infrared LED with a high‑gain Si photodiode. They are directly connectable to TTL, LSTTL and CMOS logic families and feature a built‑in Schmitt trigger.
The document provides maximum ratings, recommended operating conditions, opto‑electrical characteristics, mechanical dimensions, and handling precautions for reliable integration into VCRs, printers, vending machines and other home‑electric or automatic service equipment.
Toshiba TLP1006A specifications
| Maximum Forward Current (Ip) | 50 mA |
|---|---|
| Reverse Voltage (VR) | 5 V |
| Supply Voltage (Voc) | 4.5 V – 17 V |
| Operating Temperature Range | -25 °C to 85 °C |
| Forward Voltage (Vf) at 10 mA | 1.00 V – 1.30 V |
| Output Type | Digital output with pull‑up resistor |
Source: Toshiba TLP1006A/TLP1007A Photo Interrupter Datasheet
All Toshiba TLP1006A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage range should be used for the TLP1006A/TLP1007A?
The recommended supply voltage is between 4.5 V and 17 V.
What is the maximum forward current allowed?
The maximum forward current (Ip) is 50 mA.
What supply voltage range should be used for the TLP1006A(F) and TLP1007A(F)?
The devices operate with a supply voltage between 4.5 V and 17 V.
From: Toshiba TLP1006A(F)/TLP1007A(F) Photointerrupter Datasheet
What is the maximum threshold input current at 25 °C?
The threshold input current is limited to 4 mA max at 25 °C.
From: Toshiba TLP1006A(F)/TLP1007A(F) Photointerrupter Datasheet
