TLP1033A is a red infrared optical switch launched by Toshiba. It is mainly used in household appliances, copiers, printers, fax machines and other OA devices, as well as automatic vending machines and ticket machines. The product adopts high light output GaAs infrared LED and high sensitivity, high gain, high voltage Si photodiode, with low power consumption, high reliability and other characteristics.
The TLP1033A is a photointerrupter that combines a high‑output GaAs infrared LED with a high‑sensitivity, high‑gain, high‑voltage photodiode, delivering a digital open‑collector output. It is intended for use in consumer electronics, office equipment, vending machines and position‑detection applications.

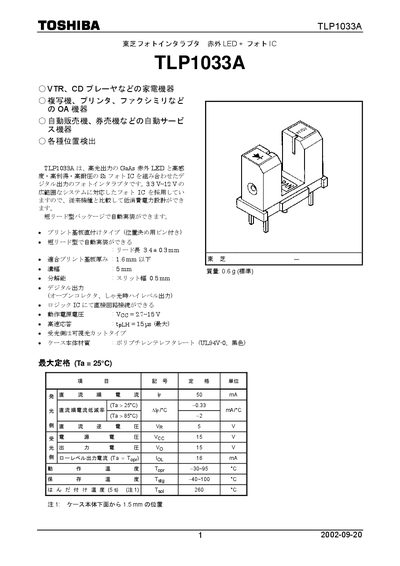

The document lists electrical, optical and mechanical characteristics, recommended supply voltage (2.7‑15 V), LED forward current (up to 20 mA), response time (15 ns max), operating temperature range (‑30 °C to 95 °C) and handling precautions such as using a bypass capacitor and avoiding full‑immersion cleaning. This manual is written in Japanese.
| Supply voltage (Vcc) | 2.7 – 15 V |
|---|---|
| Response time (tpL) | 15 ns max |
| Package type | Short‑lead surface‑mount |
| Mass | 0.6 g (standard) |
| Operating temperature | -30 °C to 95 °C |
| Reverse voltage (VR) | 5 V |
The device operates with a supply voltage between 2.7 V and 15 V.
The propagation delay is specified as up to 15 ns.
