Toshiba TC7WBD126FK Datasheet

TC7WBD126AFK is a low on-resistance, high-speed CMOS 2-bit bus switch produced by Toshiba. It can realize the shift of signal level from 5 V to 3.3 V.

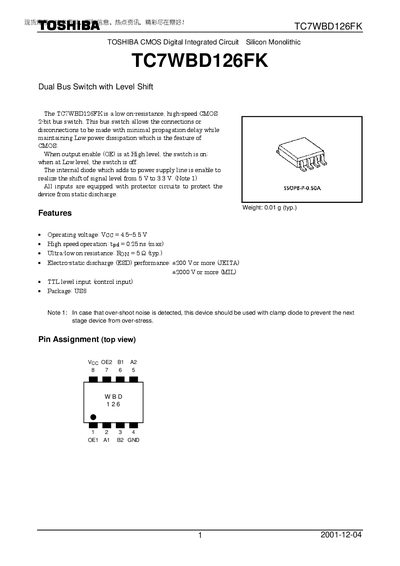

Toshiba TC7WBD126FK Datasheet - cover page
Brand
Toshiba
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
7
File format
PDF
File size
135 KB
Published
01 April, 2012
Updated
01 October, 2023
MD5 checksum
A2952F938C44E16B92E395B3A928B179

About this manual

The TC7WBD126FK is a low‑on‑resistance, high‑speed CMOS 2‑bit bus switch that shifts signal levels from 5 V to 3.3 V. It features TTL‑level inputs, ESD protection, and a compact SSOP8 package.

The document lists detailed electrical parameters, maximum ratings, recommended operating conditions, and package dimensions, along with usage restrictions for safety‑critical applications.

What's inside

  • Features
  • Pin Assignment
  • Truth Table
  • Maximum Ratings
  • Recommended Operating Conditions
  • Electrical Characteristics
  • DC Characteristics
  • AC Characteristics
  • Capacitive Characteristics
  • Package Dimensions

Specifications

Operating voltage (Voc)4.5~5.5 V
Propagation delay (tpd)0.25 ns (max)
On‑resistance (Ron)5 Ω (typ.)
ESD performance+200 V (JEITA), +2000 V (MIL)
PackageUS8 (SSOP8‑P‑0.50A)
Continuous channel current (Is)128 mA
Power dissipation (Pp)200 mW
Input rise/fall time (dt/dv)0~10 ns/V
Operating temperature-40~85 °C

Frequently asked questions

What is the operating voltage range for the TC7WBD126FK?

The device operates from 4.5 V to 5.5 V.

What is the typical on‑resistance of the TC7WBD126FK?

The typical on‑resistance is 5 Ω.

How much ESD protection does the TC7WBD126FK provide?

It can withstand at least +200 V (JEITA) and +2000 V (MIL) ESD events.

What is the propagation delay of the bus switch?

The propagation delay is up to 0.25 ns.
