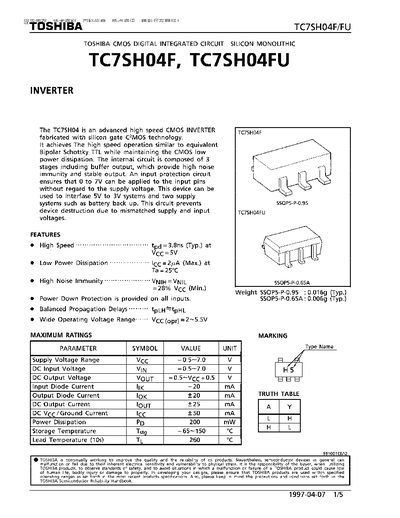

The TC7SH04F/FU is a high‑speed CMOS inverter fabricated with silicon‑gate C2MOS technology. It offers low power dissipation, high noise immunity, and a wide operating voltage range, making it suitable for interfacing 5 V to 3 V systems and dual‑supply applications.
The datasheet provides detailed electrical characteristics, maximum ratings, recommended operating conditions, and package dimensions for the SSOP5‑P‑0.95 and SSOP5‑P‑0.65A variants.
| Supply Voltage Range (Recommended) | 2.0 V ~ 5.5 V |
|---|---|
| Input Voltage Range (Recommended) | 0 V ~ 5.5 V |
| Output Voltage Range (Recommended) | 0 V ~ Vcc |
| Operating Temperature Range | -40 °C ~ 85 °C |
| Power Dissipation (Maximum) | 200 mW |
| Storage Temperature Range | -65 °C ~ 150 °C |
| Typical Weight (SSOP5‑P‑0.95) | 0.016 g |
| Typical Weight (SSOP5‑P‑0.65A) | 0.006 g |
| Propagation Delay (tPLH, typical) | 7.5 ns |
| Propagation Delay (tPHL, typical) | 5.5 ns |
The recommended supply voltage (Vcc) is 2.0 V to 5.5 V.
The device can dissipate up to 200 mW.
It operates from –40 °C to +85 °C.
The typical weight is 0.016 g.
