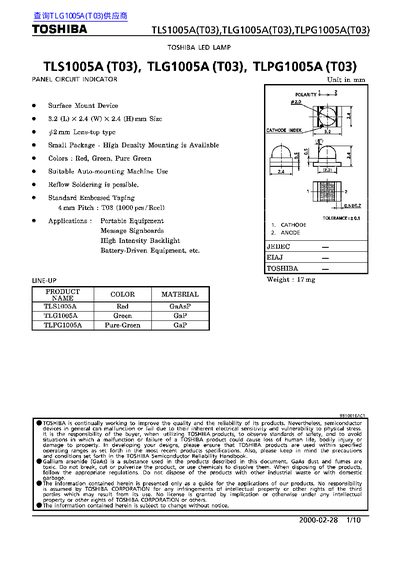

TOSHIBA TLS1005A(T03)/TLG1005A(T03)/TLPG1005A(T03) Manual

About this manual

This leaflet provides the electrical and optical specifications of the TLS1005A, TLG1005A and TLPG1005A LED lamps, including forward voltage, forward current, luminous intensity and peak emission wavelength. It also lists maximum ratings such as 25 mA forward current, 4 V forward voltage and 65 mW power dissipation.

Packaging, handling and mounting instructions are included. The devices are shipped in aluminum envelopes with silica gel, stored at 5‑30 °C and 60 % RH or lower, and require a 60 °C bake for at least 12 h before soldering. Recommended soldering profiles, cleaning solvents and automatic‑mounting conditions are also described.

What's inside

• Electrical Characteristics
• Optical Characteristics
• Packaging
• Mounting Precautions
• Soldering Guidelines
• Dimensions
• Reel Packing
• Notation Method

Specifications

Frequently asked questions

What storage temperature is recommended for the LED device?

The device should be stored at 5 °C to 30 °C.

What is the recommended baking condition before soldering?

Bake the device at 60 °C for at least 12 hours in a dry atmosphere.

Which cleaning solvents can be used after soldering?

Use AK225 or alcohol; temperature must not exceed 50 °C for 30 seconds (or 30 °C for 3 minutes).
