Start here

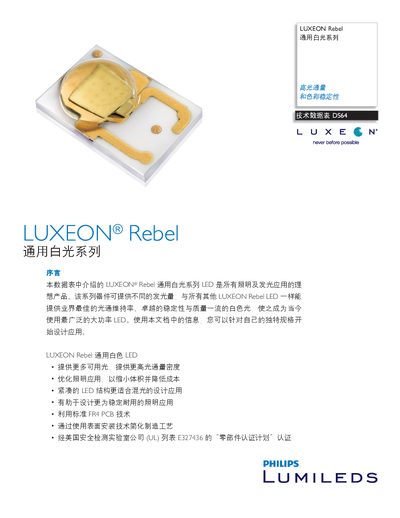

Philips LUXEON Rebel DS64 Datasheet
This datasheet describes the LUXEON Rebel series of high‑power white LEDs. It includes the naming convention (LXML‑ABCD‑EFGH), optical characteristics such as luminous flux, color temperature and CRI, and electrical parameters like forward voltage and maximum forward current.
The document also lists thermal limits, humidity sensitivity, ESD protection, and regulatory compliance (REACH, RoHS). Typical performance after 50 000 h at 700 mA shows a 70 % lumen maintenance (L70). This manual is written in Chinese.
Philips DS64 specifications
| Typical forward voltage at 350 mA (cold white) | 2.55 V |
|---|---|
| Typical forward voltage at 700 mA (cold white) | 3.99 V |
| Operating temperature range | -40 °C to 135 °C |
| Color temperature (cold white) | 4500 K – 10 000 K |
| Maximum forward current | 1000 mA |
| ESD sensitivity (human model) | <8000 V |
All Philips DS64 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical forward voltage of the LUXEON Rebel LED at 350 mA?
The typical forward voltage is about 2.55 V for the cold‑white version.
What is the operating temperature range for the LUXEON Rebel LED?
It can operate from –40 °C up to 135 °C.
What is the predicted average lumen maintenance (L70) after 50,000 hours at 700 mA?
The LUXEON Rebel series is predicted to maintain about 70 % of its initial lumen output (L70) after 50,000 hours at 700 mA.
Which environmental directives does the LUXEON Rebel comply with?
The LUXEON Rebel complies with the EU REACH and RoHS directives, avoiding the use of lead, mercury, cadmium, hexavalent chromium, PBB and PBDE.
