LUXEON Rebel General White Light Series LED is an ideal product for lighting and illumination applications, with high luminous flux and color stability. This series of LEDs provides different levels of brightness and offers the best light flux maintenance, stability, and quality, making it suitable for a wide range of high-power LED applications.

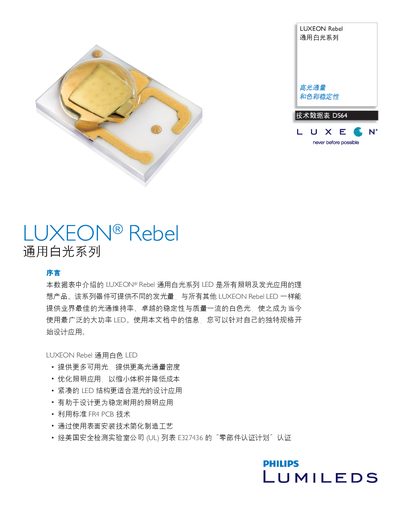

The LUXEON Rebel DS64 series from Philips Lumileds provides high luminous flux and excellent color stability for a wide range of lighting applications. The datasheet details optical, electrical, mechanical and environmental specifications to aid designers in selecting and integrating the LEDs.
Key features include multiple white color bins (cold, neutral, warm), compliance with REACH and RoHS, and detailed forward voltage and current ratings. Mechanical dimensions, mounting pad layouts and packaging codes are also provided for PCB design. This manual is written in Chinese.
| Maximum forward current (If) | 1000 mA |
|---|---|
| Typical luminous flux at 350 mA, part LXML‑PWC1‑0100 | 100 lm |
| Warm white CCT range | 2540 K – 3500 K |
| Typical CRI (warm white) | 85 |
The LUXEON Rebel series is predicted to maintain about 70 % of its initial lumen output (L70) after 50,000 hours at 700 mA.
The LUXEON Rebel complies with the EU REACH and RoHS directives, avoiding the use of lead, mercury, cadmium, hexavalent chromium, PBB and PBDE.
