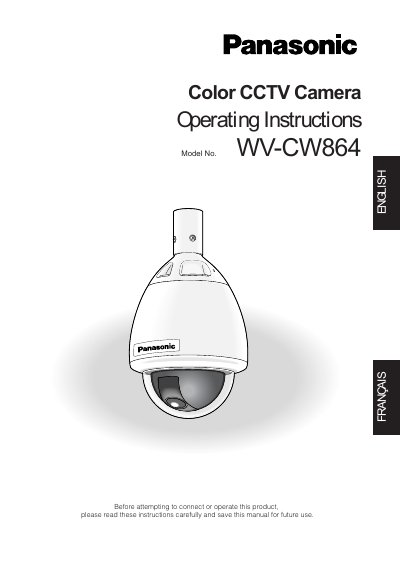

Panasonic WV-CW864 Color CCTV Camera Operating Instructions

About this manual

This manual provides operating instructions for the Panasonic WV-CW864 Color CCTV Camera. The device is designed for outdoor video surveillance systems and features a digital signal processor, pan/tilt mechanism, x22 zoom lens, and RS485 communication interface within a compact outdoor enclosure rated IP66.

The document details setup procedures, including menu descriptions, preset data uploading and downloading, and special settings like auto mode and digital flip. It also covers installation guidelines, camera cleaning, and important safety instructions regarding power, environmental conditions, and maintenance.

What's inside

• IMPORTANT SAFETY INSTRUCTIONS
• FEATURES
• Camera Cleaning
• Preset Data Uploading or Downloading
• Setup Menu
• Presetting
• Deleting Preset Positions
• Home Position Setting
• Self Return Setting
• Mounting the Camera

Specifications

Frequently asked questions

How many preset positions can the camera store?

The camera can store 64 preset positions.

What is the maximum operating temperature?

The camera should be used where temperatures are between -30°C and +50°C.

What voltage is required for the WV-CW864?

The input power source required is 24 V AC.
