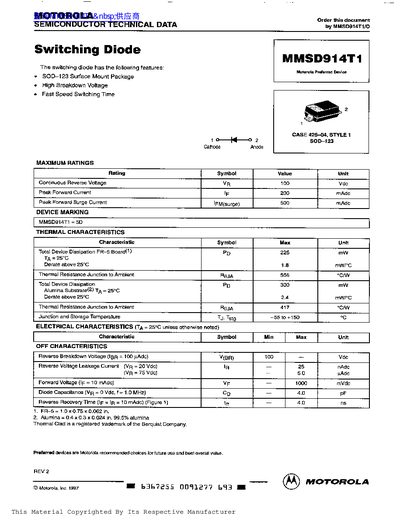

This document provides technical specifications and maximum ratings for the Motorola MMSD914T1 switching diode. Key features include a 100 Vdc continuous reverse voltage rating and a fast speed switching time of up to 4.0 ns.
The datasheet details electrical characteristics such as reverse breakdown voltage, leakage current, forward voltage, and capacitance. It also includes specific instructions for using the SOD-123 surface mount package, covering recommended footprints, power dissipation calculations based on board materials, and soldering precautions to prevent thermal damage.
| Continuous Reverse Voltage | 100 Vdc |
|---|---|
| Peak Forward Current | 200 mAdc |
| Reverse Breakdown Voltage | 400 Vdc |
| Reverse Recovery Time | 4.0 ns |
| Package Type | SOD-123 Surface Mount Package |
The junction and storage temperature range from -55 to +150 °C.
The soldering temperature should not exceed 260°C for more than 10 seconds.
