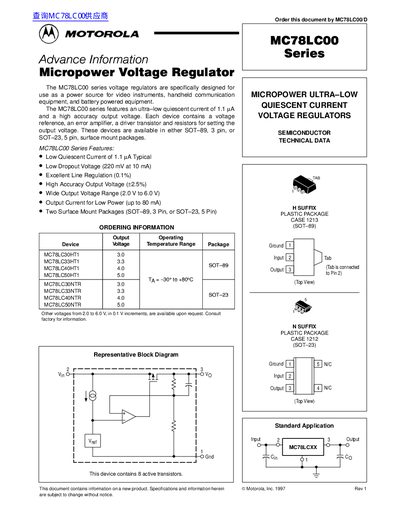

Motorola MC78LC00 Series Micropower Voltage Regulator Datasheet
The MC78LC00 series voltage regulators are designed specifically for use as a power source in video instruments, handheld communication equipment, and battery-powered devices. Key features include an ultra-low quiescent current of 1.1 µA, high accuracy output voltage within +2.5%, and a wide output voltage range from 2.0 V to 6.0 V.
Read onlineMotorola MC78LC00 specifications
| Quiescent Current (Typical) | 1.1 µA |
|---|---|
| Output Voltage Range | 2.0 V to 6.0 V |
| Line Regulation | 0.1% |
| Output Accuracy | +2.5% |
| Maximum Power Dissipation (SOT-89) | 300 mW |
| Maximum Power Dissipation (SOT-23) | 150 mW |
| Operating Junction Temperature | -30° to +80°C |
Source: Motorola MC78LC00 Series Micropower Voltage Regulator Datasheet
All Motorola MC78LC00 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What capacitance is required between the output terminal and ground?
The regulators require greater than 0.1 µF of capacitance for stability.
From: Motorola MC78LC00 Series Micropower Voltage Regulator Datasheet
Can the MC78LC00 series be used in battery-powered applications?
Yes, they are specifically designed with ultra low quiescent current making them ideal for battery powered applications.
From: Motorola MC78LC00 Series Micropower Voltage Regulator Datasheet
What is the maximum output current the regulator can supply?
The device can supply up to 80 mA of output current.
Which package types are available for the MC78LC00 devices?
They are available in SOT‑89 (3‑pin) and SOT‑23 (5‑pin) surface‑mount packages.
