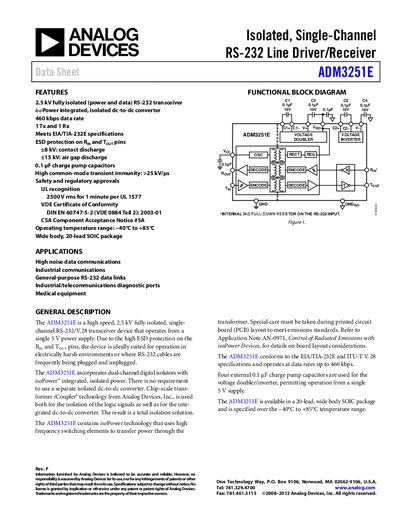

Analog Devices ADM3251E Isolated RS-232 Line Driver/Receiver Datasheet
The ADM3251E from Analog Devices provides a fully isolated RS‑232 transceiver solution, integrating isoPower™ isolated power and a de‑to‑de converter in a 20‑lead SOIC package. It is designed for high‑noise industrial, telecommunications and medical environments where frequent cable plugging and unplugging occur.
The device operates from a single 5 V supply, offers up to 460 kbps data rate, and meets EIA/TIA‑232E specifications. It includes robust ESD protection (+15 kV air discharge, +8 kV contact discharge) and is UL, VDE and CSA certified for safety.
Analog Devices ADM3251E specifications
| Operating Voltage Range (VEE) | 4.5 V to 5.5 V |
|---|---|
| Maximum Data Rate | 460 kbps |
| Isolation Voltage (Rated Dielectric) | 2500 Vrms for 1 min |
| ESD Protection (Human Body Model) | +15 kV air discharge, +8 kV contact discharge |
| Operating Temperature Range | -40 °C to +85 °C |
Source: Analog Devices ADM3251E Isolated RS-232 Line Driver/Receiver Datasheet
