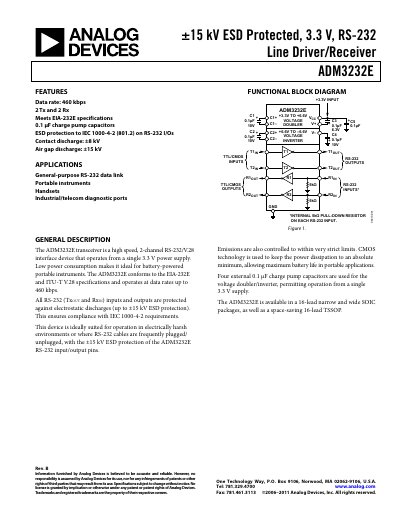

Analog Devices ADM3232E Datasheet
The ADM3232E is a high‑speed dual‑channel RS‑232/V.28 line driver/receiver from Analog Devices. It operates from a single 3.3 V supply, offers low power consumption, and includes ±15 kV ESD protection on all RS‑232 pins, making it suitable for portable and harsh‑environment applications.
The device supports data rates up to 460 kbps, provides TTL/CMOS logic inputs and outputs, and is available in 16‑lead SOIC and TSSOP packages. Detailed electrical specifications, pin descriptions, and typical performance curves are included.
Analog Devices ADM3232E specifications
| Operating Voltage Range | 3.0 V – 5.5 V |
|---|---|
| Maximum Data Rate | 460 kbps |
| ESD Protection (RS‑232 I/O pins) | ±15 kV |
| Logic Input Threshold Low (V_INL) | 0.8 V |
| TTL/CMOS Output Voltage High | VCC − 0.6 V |
| Package Options | 16‑Lead SOIC_N, 16‑Lead TSSOP, 16‑Lead SOIC_W |
All Analog Devices ADM3232E documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum data rate of the ADM3232E?
The device supports a maximum data rate of 460 kbps.
What ESD protection rating does the ADM3232E provide on its RS‑232 pins?
All RS‑232 I/O pins are protected against electrostatic discharge up to ±15 kV.
What is the maximum data rate of the ADM3232E?
The device supports data rates up to 460 kbps.
From: Analog Devices ADM3232E RS-232 Line Driver/Receiver Datasheet
What ESD protection does the ADM3232E provide?
It offers +15 kV human‑body model protection, +15 kV IEC 1000‑4‑2 air discharge, and +8 kV IEC 1000‑4‑2 contact discharge on all I/O pins.
From: Analog Devices ADM3232E RS-232 Line Driver/Receiver Datasheet
