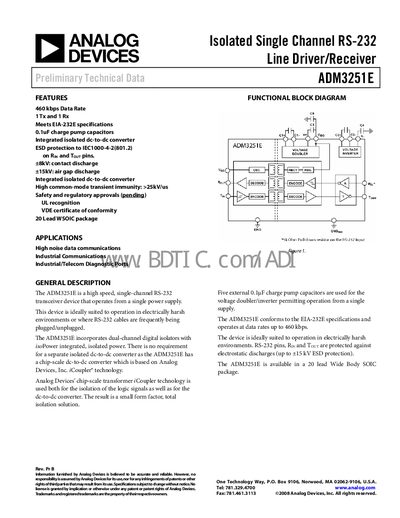

The file is about the introduction of ADM3251E product. This product is a high-speed, single-channel RS-232 transceiver device that operates from a single power supply. This device is ideally suited to operate in high noise data communications, industrial communications, industrial/telecom diagnostic ports and other applications.
The ADM3251E is a single‑channel RS‑232 transceiver that operates from a single supply and provides isolation for harsh industrial environments. It integrates dual‑channel digital isolators, an isoPower isolated DC‑DC converter, and ESD protection on the RS‑232 pins.
The device is offered in a 20‑lead Wide Body SOIC package, supports data rates up to 460 kbps, and meets EIA‑232E specifications. It includes extensive protection features such as +15 kV air‑gap discharge and +8 kV contact discharge for the Rin and Tour pins.
| Maximum Data Rate | 460 kbps |
|---|---|
| Operating Voltage Range (VCC) | 4.5 V – 5.5 V |
| Package | 20‑lead Wide Body SOIC |
| ESD Protection (Rin/Tour pins) | +15 kV air‑gap, +8 kV contact |
| Industrial Temperature Range | -40 °C to +85 °C |
The device supports a maximum data rate of 460 kbps.
It is available in a 20‑lead Wide Body SOIC package.
The pins are protected up to +15 kV for air‑gap discharge and +8 kV for contact discharge.
