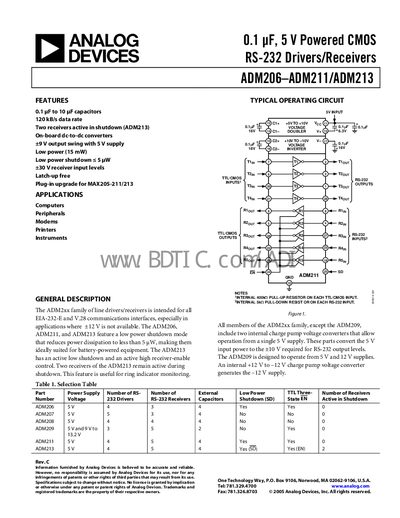

ADM206–ADM211/ADM213 is a 0.1 µF, 5 V powered CMOS RS-232 driver/receiver provided by Analog Devices. It features 0.1 µF to 10 µF capacitors, 120 kB/s data rate, two receivers active in shutdown (ADM213), on-board dc-to-dc converters, ±9 V output swing with 5 V supply, low power (15 mW), low power shutdown (≤ 5 µW), ±30 V receiver input levels, latch-up free, and is a plug-in upgrade for MAX205-211/213.
The ADM206, ADM211 and ADM213 are low‑power CMOS RS‑232 line drivers and receivers designed for EIA‑232‑E and V.28 interfaces, especially where a +12 V supply is unavailable. They feature low‑power shutdown modes, internal charge‑pump converters, and options for active receivers during shutdown.
The document provides detailed specifications, absolute maximum ratings, pin configurations, functional descriptions, typical performance characteristics, and an ordering guide for the various DIP, SOIC and SSOP package options.
| Data Rate | 120 kB/s |
|---|---|
| Output Voltage Swing | +5 V to +9 V |
| Shutdown Supply Current | 1 µA to 10 µA |
| Absolute Maximum Vee | -0.3 V to +6 V |
The shutdown current is less than 5 pW.
Two receivers remain active in shutdown.
The device operates from –40 °C to +85 °C.
