The ADG774 is a monolithic CMOS device comprising four 2:1 multiplexer/demultiplexers with high impedance outputs. The CMOS process provides low power dissipation and high bandwidth. The ADG774 is designed to operate from a single 3 V or 5 V supply and has rail-to-rail inputs and outputs. The device is available in a 20-lead TSSOP package.
The ADG774 is a monolithic CMOS quad 2:1 multiplexer/demultiplexer with low on‑resistance, wide bandwidth, and ultra‑low power dissipation. It operates from a single 3.3 V or 5 V supply and is TTL/CMOS compatible, making it suitable for USB 1.1, fast Ethernet, audio, video, and battery‑powered applications.

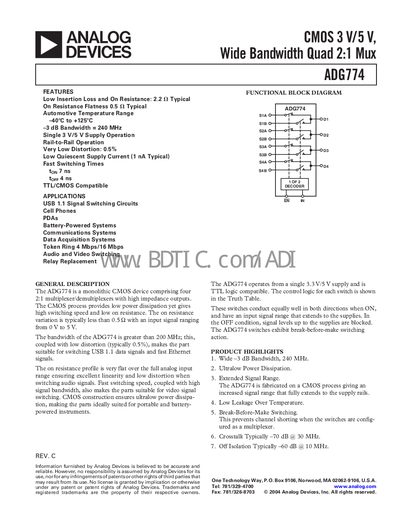

The document includes functional block diagrams, product highlights, detailed electrical specifications, absolute maximum ratings, pin configurations, typical performance curves, test circuit descriptions, and an ordering guide for the various package options (SOIC, QSOP).
| On Resistance (Ron) typical | 2.2 Ω |
|---|---|
| -3 dB Bandwidth | 240 MHz |
| Supply Voltage | 3.3 V or 5 V (single supply) |
| Source OFF Leakage Current | 0.01 nA typical |
| Crosstalk | -70 dB @ 30 MHz typical |
| Off Isolation | -60 dB @ 10 MHz typical |
| Distortion | 0.5 % typical |
The ADG774 operates from a single 3.3 V or 5 V supply.
The typical on‑resistance is 2.2 Ω.
It has a -3 dB bandwidth of 240 MHz.
Source OFF leakage is typically 0.01 nA.
