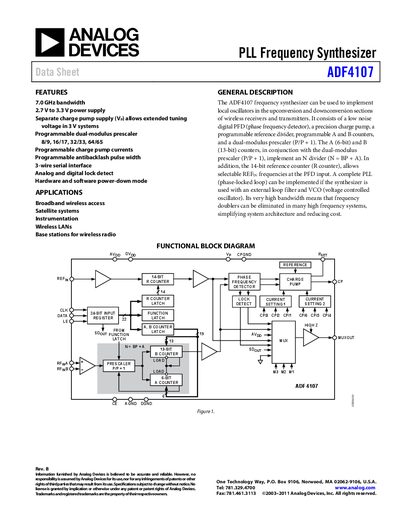

Analog Devices ADF4107 PLL Frequency Synthesizer Datasheet
The ADF4107 is a high‑performance PLL frequency synthesizer covering 1 GHz to 7 GHz RF input frequencies. It is used in broadband wireless, satellite, and base‑station applications and features a separate charge‑pump supply, programmable prescalers, and a 24‑bit serial interface.
The document includes detailed electrical specifications, absolute maximum ratings, pin functions, typical performance curves, interfacing examples for SPI‑compatible microcontrollers, PCB layout recommendations, and ordering information for both TSSOP and LFCSP packages.
Analog Devices ADF4107 specifications
| RF Input Frequency | 1.0 – 7.0 GHz |
|---|---|
| RF Input Sensitivity | -5 /+5 dBm |
| Maximum Allowable Prescaler | 300 MHz |
| REFin Input Frequency | 20 – 250 MHz |
| Phase Detector Frequency | 104 MHz max |
| Analog Power Supply (AVpp) | 2.7 – 3.3 V |
| Operating Temperature Range (Industrial) | -40 °C to +85 °C |
Source: Analog Devices ADF4107 Datasheet
All Analog Devices ADF4107 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum serial clock rate for the ADF4107?
The maximum allowable serial clock rate is 20 MHz.
From: Analog Devices ADF4107 PLL Frequency Synthesizer Datasheet
What is the operating temperature range of the device?
The device operates from –40 °C to +85 °C.
From: Analog Devices ADF4107 PLL Frequency Synthesizer Datasheet
What is the maximum serial clock rate for the SPI interface?
The maximum allowable serial clock rate is 20 MHz, giving an update rate of up to 833 kHz.
What temperature range can the ADF4107 operate in?
The device operates from –40 °C to +85 °C for the industrial version.
