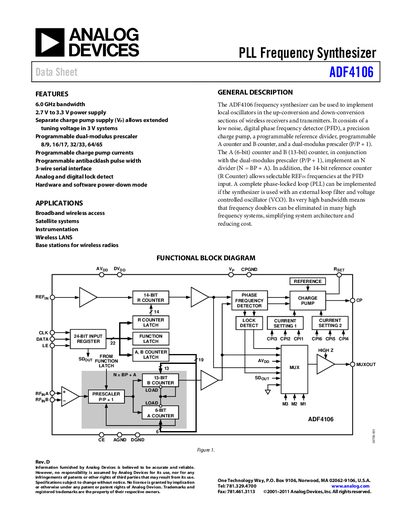

Analog Devices ADF4106 PLL Frequency Synthesizer Datasheet
The ADF4106 PLL frequency synthesizer can be used to implement local oscillators in wireless receivers and transmitters. It includes a low‑noise phase‑frequency detector, programmable charge pump, reference divider, A and B counters, and a dual‑modulus prescaler.
The device operates from a 2.7‑3.3 V supply, supports RF input frequencies from 0.5 GHz to 6 GHz, and functions over an industrial temperature range of –40 °C to +85 °C. Detailed pin configurations, timing diagrams, and performance characteristics are provided.
Analog Devices ADF4106 specifications
| RF Input Frequency | 0.5 GHz – 6.0 GHz (min/max) |
|---|---|
| Analog Power Supply (AVop) | 2.7 V – 3.3 V (min/max) |
| Operating Temperature Range | -40 °C to +85 °C |
| Maximum Allowable Prescaler | 300 MHz (P=8) |
| Phase Detector Frequency | 104 MHz (max) |
Source: Analog Devices ADF4106 PLL Frequency Synthesizer Datasheet
All Analog Devices ADF4106 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the RF input frequency range of the ADF4106?
The device accepts RF input frequencies from 0.5 GHz to 6.0 GHz.
From: Analog Devices ADF4106 PLL Frequency Synthesizer Datasheet
What supply voltage does the ADF4106 require?
It operates from an analog power supply (AVop) of 2.7 V to 3.3 V.
From: Analog Devices ADF4106 PLL Frequency Synthesizer Datasheet
What temperature range can the ADF4106 operate in?
It is rated for operation from –40 °C to +85 °C.
