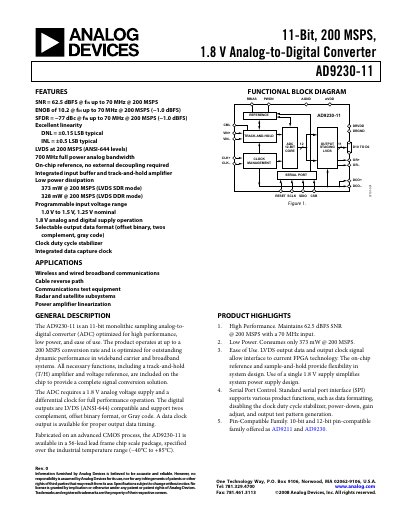

This document describes the features and characteristics of the 11-Bit, 200 MSPS, 1.8 V Analog-to-Digital Converter AD9230-11. The converter has high signal-to-noise ratio, excellent linearity, low power dissipation, and is suitable for applications such as wireless and wired broadband communications.
The AD9230-11 is an 11‑bit monolithic sampling ADC optimized for high performance, low power, and ease of use. It operates up to 200 MSPS, supports LVDS digital outputs, and includes an on‑chip reference and track‑and‑hold amplifier, requiring only a 1.8 V analog and digital supply.
The device offers selectable output data formats (offset binary, two's complement, gray code) and a standard SPI interface for configuration. It is supplied in a 56‑lead LFCSP package and is rated for industrial temperature range (‑40 °C to +85 °C).
| Resolution | 11 Bits |
|---|---|
| Maximum Conversion Rate | 200 MSPS |
| Analog Supply Voltage (AVDD) | 1.8 V |
| Analog Input Bandwidth | 700 MHz |
The AD9230-11 can sample at up to 200 MSPS.
It requires a 1.8 V analog supply (AVDD) and a 1.8 V digital supply (DRVDD).
The device supports LVDS output in offset binary, two's complement, or gray code formats.
