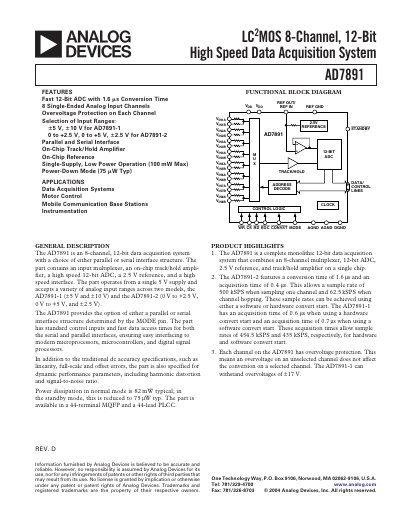

Analog Devices AD7891 Data Acquisition System Datasheet
The AD7891 integrates an 8‑channel multiplexer, a 12‑bit ADC, a 2.5 V reference, and a track/hold amplifier on a single chip. It operates from a single 5 V supply and offers both parallel and serial interface options selectable via the MODE pin.
The device provides over‑voltage protection on each channel, low power consumption (typical 82 mW normal, 75 mW standby) and supports a variety of input voltage ranges across two model families (AD7891‑1 and AD7891‑2). Detailed specifications, timing characteristics, pin configurations and ordering information are included.
All Analog Devices AD7891 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How many analog input channels does the AD7891 provide?
The AD7891 provides eight single‑ended analog input channels.
What package options are available for the AD7891?
The AD7891 is offered in a 44‑lead MQFP and a 44‑lead PLCC package.
