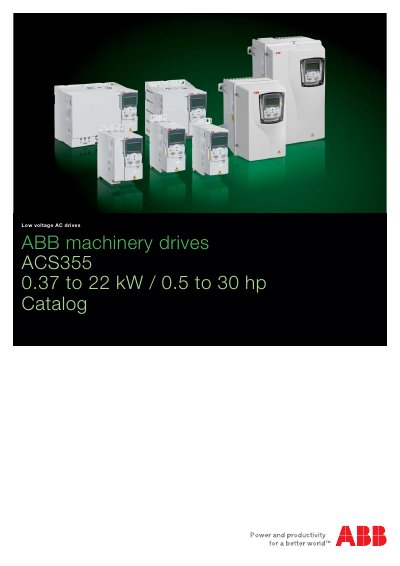

This document describes the features and characteristics of the ABB machinery drive ACS355, including ratings and types, voltages, construction, technical data, dimensions and weights, cooling and fuses, control connections, connection examples, options, user interfaces, machine interfaces, extension modules, protection and installation, etc.
This catalog describes the ABB ACS355 family of low‑voltage AC drives, covering power ratings from 0.37 kW to 22 kW (0.5‑30 hp). It includes detailed technical data, construction options, and environmental limits for both standard and high‑protection versions.
Key sections cover typical applications such as mixers, conveyors, decanters and packaging machines, as well as ordering information, voltage and frame‑size options, cooling and fuse data, control connections, and a compact PLC‑drive starter kit. Service and life‑cycle support details are also provided.
| Power range | 0.37 to 22 kW (0.5 to 30 hp) |
|---|---|
| Frequency range | 48 to 63 Hz |
| Brake chopper | Built‑in brake chopper as standard |
