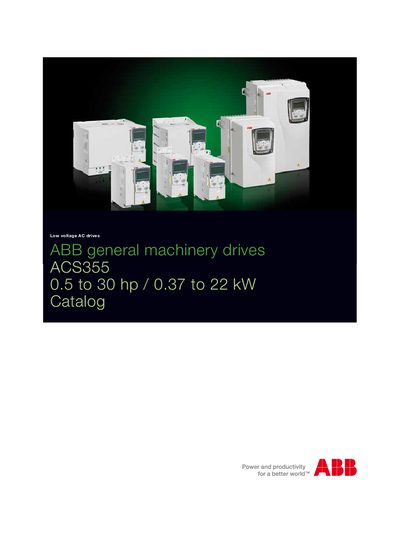

This document provides information about the ABB general machinery drives ACS355, including product features, models, installation methods, technical parameters, etc.
The catalog introduces the ABB ACS355 series of general‑machinery drives, highlighting their compact design, fast commissioning, and safety functions such as SIL3 safe‑torque‑off. It lists the applications, key benefits, and optional features like IP66/UL Type 4X protection and built‑in braking chopper.
Technical sections cover ratings, type codes, voltage options, construction details, dimensions, weights, and extensive technical data such as power range, frequency limits, analog and digital I/O, and overload capacity. The document also describes user interfaces, machine interfaces, extension modules, and tools like DriveWindow Light, Drive Browser, and FlashDrop.
| Power range | 0.5 to 30 hp / 0.387 to 22 kW |
|---|---|
| Voltage options (1‑phase) | 200 to 240 V + 10% |
| Voltage options (3‑phase, 200‑240 V) | 200 to 240 V + 10% |
| Voltage options (3‑phase, 380‑480 V) | 380 to 480 V + 10% |
| Frequency range | 48 to 63 Hz (up to 600 Hz output) |
| Maximum output frequency | 600 Hz |
| Protection class options | IP20, IP66/UL Type 4X, IP69K (optional) |
The drives can operate up to a maximum output frequency of 600 Hz.
The series is offered with IP20, optional IP66/UL Type 4X, and an IP69K option with compatible cable glands.
Available voltage ranges are 1‑phase 200‑240 V, 3‑phase 200‑240 V, and 3‑phase 380‑480 V, each with a +10 % tolerance.
