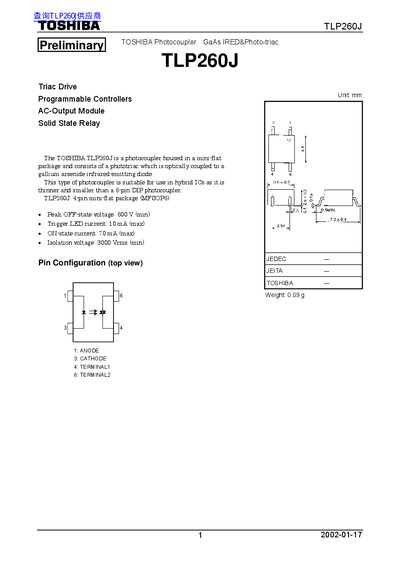

Toshiba TLP260J Photocoupler Datasheet
The TLP260J is a 4‑pin mini‑flat (MFSOP6) photocoupler that combines a phototriac with a GaAs infrared‑emitting diode. It is designed for hybrid ICs and offers a compact alternative to larger DIP photocouplers.
The document lists maximum ratings, individual and coupled electrical characteristics, pin configuration, and restrictions on product use, including temperature limits, isolation voltage, and handling precautions.
Toshiba TLP260J specifications
| Peak OFF‑state voltage | 600 V (min) |
|---|---|
| Trigger LED current | 10 mA (max) |
| Isolation voltage | 3000 Vrms (min) |
| Forward current (IF) | 50 mA |
| Peak ON‑state current | 2 A |
| Storage temperature range | -55~125 °C |
| Operating temperature range | -40~100 °C |
| Lead soldering temperature (10 s) | 260 °C |
| Supply voltage | 240 Vac |
All Toshiba TLP260J documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the isolation voltage of the TLP260J?
The isolation voltage is 3000 Vrms (minimum).
What are the recommended operating temperature limits?
The device is rated for operation from –40 °C to 100 °C.
What is the maximum peak off‑state voltage rating?
The device is rated for a peak off‑state voltage of 600 V (minimum).
What supply voltage is recommended for normal operation?
A supply voltage of 240 VAC is recommended.
What is the peak off‑state voltage rating?
The peak off‑state voltage is specified as 600 V minimum.
What is the maximum forward current allowed?
The absolute maximum forward current is 50 mA.
