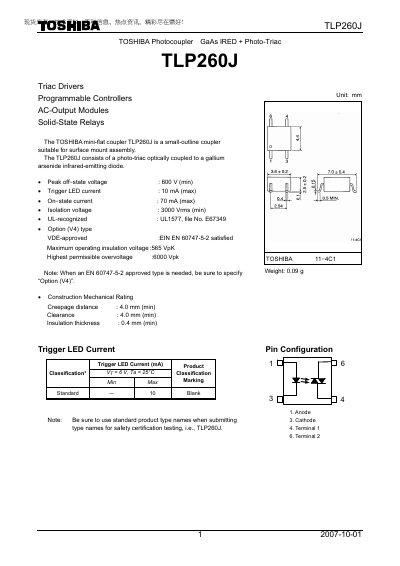

TLP260J is a TOSHIBA photocoupler suitable for surface mount assembly. It consists of a photo-triac optically coupled to a gallium arsenide infrared-emitting diode. It has a peak off-state voltage of 600 V, a trigger LED current of 10 mA, an on-state current of 70 mA, and an isolation voltage of 3000 Vrms.
The TLP260J is a miniature surface‑mount optocoupler that combines a gallium‑arsenide infrared LED with a photo‑triac. It offers high isolation voltage, low trigger current, and compact size for use in AC‑output modules, solid‑state relays and programmable controllers.
Key electrical ratings, recommended operating conditions, and handling precautions are provided, along with pin configuration and mechanical dimensions. The document also outlines restrictions on product use and safety guidelines.
| Peak off‑state voltage | 600 V (min) |
|---|---|
| Trigger LED current | 10 mA (max) |
| On‑state current | 70 mA (max) |
| Isolation voltage | 3000 Vrms (min) |
| Weight | 0.09 g |
The device is rated for a peak off‑state voltage of 600 V (minimum).
A supply voltage of 240 VAC is recommended.
The isolation voltage is specified as 3000 Vrms (minimum).
The trigger LED current should not exceed 10 mA (maximum).
