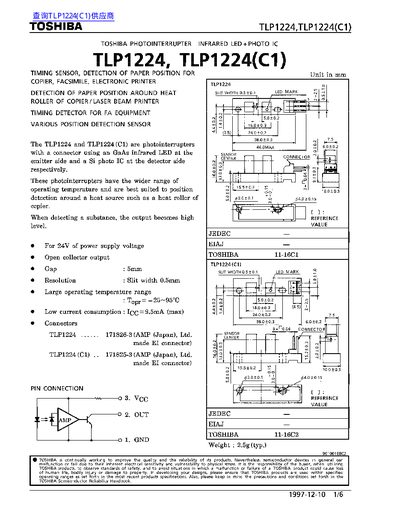

This document describes the TLP1224 and TLP1224(C1) photointerrupters, which use an infrared LED and a silicon photo‑IC to detect paper position in copiers, facsimiles, and electronic printers. It includes mechanical dimensions, electrical ratings, and recommended handling procedures.
Key sections cover maximum ratings, opto‑electrical characteristics, terminal strength, installation precautions, compatible connectors, and positioning of the shutter and device. The information is intended for designers and technicians integrating the sensor into equipment.
| Supply Voltage (max) | 30 V |
|---|---|
| Operating Temperature Range | -25~95 °C |
| Storage Temperature Range | -40~95 °C |
| Slit Width (resolution) | 0.5 mm |
The sensor’s resolution slit width is 0.5 mm.
It operates from –25 °C to +95 °C.
