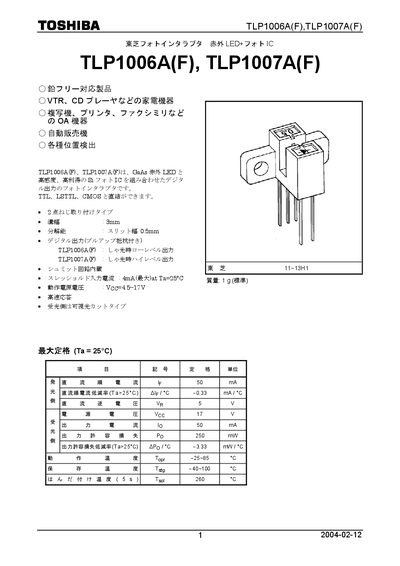

This document introduces the Toshiba TLP1006A(F) and TLP1007A(F) photo interrupter products released on February 12, 2004. These products combine GaAs infrared LEDs with high-sensitivity, high-gain Si photo ICs, and feature digital output, high-speed response, and can be used in various applications such as home appliances, OA equipment, and vending machines.
This datasheet provides detailed electrical, optical, and mechanical characteristics of the Toshiba TLP1006A(F) and TLP1007A(F) infrared LED‑photodiode photointerrupters. It includes recommended operating conditions, pin assignments, and performance curves for both low‑level and high‑level output versions.
The document also contains handling precautions, recommended soldering torque, and guidelines for mounting the sensor and slit plate to ensure reliable detection in applications such as VTRs, printers, vending machines, and other consumer and industrial equipment. This manual is written in Japanese.
| Supply Voltage (Vcc) | 4.5 V – 17 V |
|---|---|
| Threshold Input Current | 4 mA (max) at 25 °C |
| Low‑Level Output Current (IoL) | 16 mA |
| Storage Temperature Range | -40 °C to 100 °C |
| Mass (standard) | 1 g |
| Pin Assignment | 1 Anode Vcc, 2 Cathode OUT, 5 GND |
| Screw Torque Limit | ≤ 0.59 N·m |
The devices operate with a supply voltage between 4.5 V and 17 V.
The threshold input current is limited to 4 mA max at 25 °C.
Screws should be tightened to a torque of 0.59 N·m or less.
