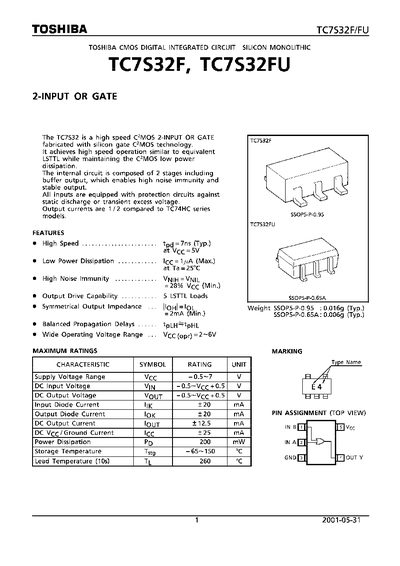

The TC7S32F/FU is a high‑speed CMOS 2‑input OR gate with low power dissipation and high noise immunity. It features a buffered output stage, static‑discharge protection on all inputs, and a typical propagation delay of 7 ns at a 5 V supply.
The device is supplied in SSOP5‑P‑0.95 and SSOP5‑P‑0.65A packages, operates over a 2 V to 6 V supply range, and includes detailed DC and AC electrical characteristics, package dimensions, and usage restrictions for reliable integration in electronic designs.
