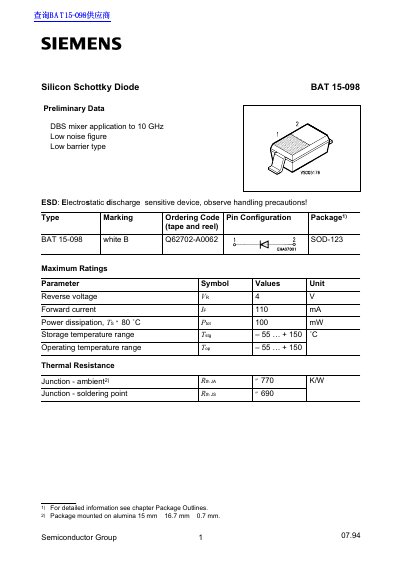

Siemens BAT 15-098 Silicon Schottky Diode Preliminary Data Sheet
This document provides preliminary technical data for the Siemens BAT 15-098, a silicon Schottky diode designed for DBS mixer applications up to 10 GHz. Key features include a low noise figure and a low barrier type construction.
The datasheet lists maximum ratings such as a reverse voltage of 4 V and forward current of 110 mA. It also details electrical characteristics including breakdown voltage, forward voltage at various currents, diode capacitance, and impedance characteristics across frequencies from 1 GHz to 10 GHz.
Siemens BAT 15 specifications
| Reverse voltage | 4 V |
|---|---|
| Forward current | 110 mA |
| Power dissipation | 100 mW |
| Operating temperature range | -55...+ 150 °C |
| Junction - ambient thermal resistance | < 77 K/W |
| Breakdown voltage | 4 V |
Source: Siemens BAT 15-098 Silicon Schottky Diode Preliminary Data Sheet
All Siemens BAT 15 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- Siemens BAT 15-098 Silicon Schottky Diode Preliminary Data Sheet 4 p
- Siemens BAT 15 HiRel Silicon Schottky Diode Datasheet 9 p
- Siemens BAT 15-04 Silicon Dual Schottky Diode Datasheet 3 p
- Silicon Schottky Diodes BAT 15 Series Datasheet 2 p
- BAT BAT 15-020 S to BAT 15-110 S Silicon Schottky Diodes Datasheet 2 p
- Silicon Schottky Diodes BAT 15- ... R Datasheet 2 p
- BAT BAT 15-020D Silicon Schottky Diode Datasheet 2 p
- Siemens BAT 15 HiRel Silicon Schottky Diode Datasheet 9 p
Questions answered in these manuals
What is the maximum reverse voltage rating for the BAT 15-098 diode?
The maximum reverse voltage rating is 4 V.
From: Siemens BAT 15-098 Silicon Schottky Diode Preliminary Data Sheet
What is the maximum power dissipation when the temperature is below 80°C?
The maximum power dissipation is 100 mW when the temperature is below 80°C.
From: Siemens BAT 15-098 Silicon Schottky Diode Preliminary Data Sheet
What are the available quality levels for the BAT 15?
The available quality levels are Professional Quality (P), High Rel Quality (H), Space Quality (S), and ESA Space Quality (ES).
What is the maximum reverse voltage for the BAT 15?
The maximum reverse voltage is 3 V.
What is the maximum reverse voltage rating for this diode?
The device can withstand a maximum reverse voltage of 4 V.
From: Siemens BAT 15-04 Silicon Dual Schottky Diode Datasheet
How much forward current can the BAT 15-04 handle continuously?
The diode is rated for a maximum forward current of 110 mA.
From: Siemens BAT 15-04 Silicon Dual Schottky Diode Datasheet
