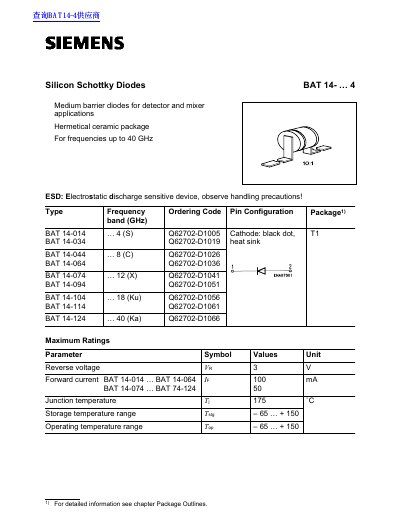

Siemens BAT 14-...4 Silicon Schottky Diodes Datasheet
This document is a datasheet for the Siemens BAT 14-...4 series of Silicon Schottky diodes. These medium barrier diodes are designed for detector and mixer applications, featuring a hermetically sealed ceramic package suitable for frequencies up to 40 GHz. The document notes that the devices are electrostatic discharge (ESD) sensitive and requires adherence to handling precautions.
Read onlineSiemens BAT 14 specifications
| Frequency range | up to 40 GHz |
|---|---|
| Package type | Hermetical ceramic package |
| Reverse voltage | 3 V |
| Junction temperature | 175 C |
| Operating temperature range | - 65... + 150 |
Source: Siemens BAT 14-...4 Silicon Schottky Diodes Datasheet
All Siemens BAT 14 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- Siemens BAT 14-...4 Silicon Schottky Diodes Datasheet 3 p
- Siemens BAT 14-099 Silicon Dual Schottky Diode Datasheet 4 p
- Siemens BAT 14-098 Silicon Schottky Diode Preliminary Data 4 p
- Siemens BAT 14-03W Silicon Schottky Diode Datasheet 4 p
- Semiconductor Group Silicon Schottky Diodes BAT 14 Series Datasheet 2 p
- Siemens HiRel Silicon Schottky Diode BAT 14 Datasheet 7 p
Questions answered in these manuals
What is the maximum reverse voltage rating for these diodes?
The maximum reverse voltage (Va) is rated at 3 V.
How much forward current can the BAT 14-074 through BAT 14-124 models handle?
Models from BAT 14-074 to BAT 14-124 have a maximum forward current of 50 mA.
What is the maximum reverse voltage rating?
The maximum reverse voltage rating is 4 V.
From: Siemens BAT 14-099 Silicon Dual Schottky Diode Datasheet
What is the forward current rating?
The forward current rating is 90 mA.
From: Siemens BAT 14-099 Silicon Dual Schottky Diode Datasheet
What is the maximum operating temperature for the BAT 14-098?
The operating temperature range is from -55 to +150 °C.
From: Siemens BAT 14-098 Silicon Schottky Diode Preliminary Data
Is the BAT 14-098 suitable for DBS mixer applications?
Yes, it is designed for DBS mixer applications up to 12 GHz.
From: Siemens BAT 14-098 Silicon Schottky Diode Preliminary Data
